Description

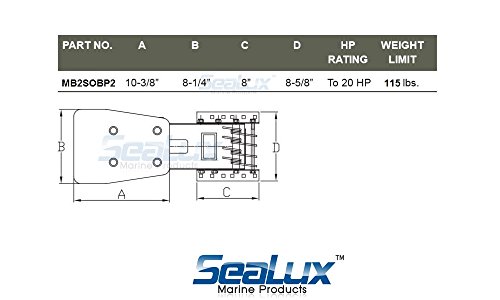

5 position locking height adjustment Wide track body for added stability. Made of tough 304 Stainless Steel Mounting pad: 8-1/4″ wide * 10-3/8″ long ×2″ thick; Designed to also accommodate the width dimensions of late model auxiliary outboard motors Maximum HP Capacity: 7 to 20. Maximum Motor Weight: up to 115 lbs. Vertical Travel: 11.25. Motor Pad (w x h x d): 8-1/4″W *10-3/8″H ×2″ D; Installation Space Required (w x h): 9 x 9.
Marine Grade 304 Stainless steel, spring loaded (5 vertical position) adjustable bracket
Solid polypropylene mounting board
Suits 2-stroke motors 7 1/2 – 20 HP;Ideal for small to medium sized powerboats and yachts
Easy to lift and lower – Stainless springs help counterbalance motor weight Wide track body for added stability
Heavy duty with reinforced welded frame and stamped stainless components
